Mettre en évidence:
polishing cbn sharpening wheel
, cbn sharpening wheel high toughness
, grinding cbn wheel
Nom du produit: |
Roue de broyage CBN personnalisée longue durée de vie |
Déchets et déchets: |
Poudre de CBN |
Lieur: |
Poudre métallique, poudre de résine, céramique ou éctroplatée |
Application du projet: |
Traitement de l'acier à haute teneur en manganèse, de l'acier à haute teneur en chrome, du nickel, d |
Avantages: |
Haute dureté, forte inerté chimique, protection de l'environnement et économie d'énergie, etc. |
Forme: |
Les pièces de ce type sont utilisées pour les pièces d'équipement et les pièces d'équipement. |

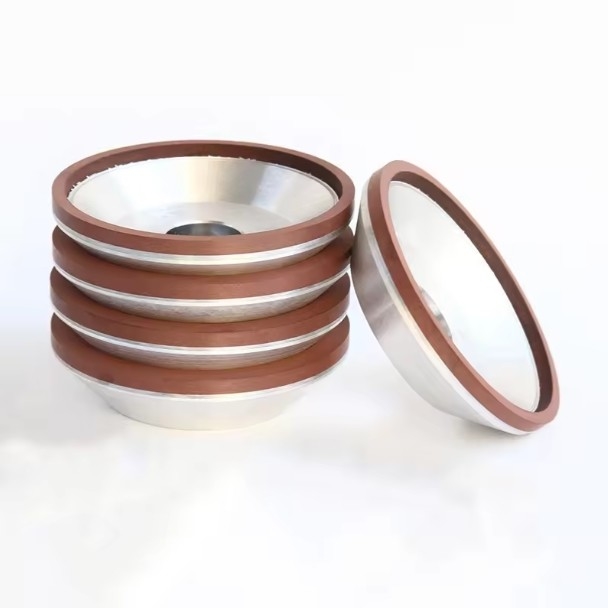

Grinding And Polishing CBN Sharpening Wheel High Toughness
Customized Long Life CBN Grinding Wheel for Grinding and Polishing
The CBN grinding wheel is a high-performance grinding tool, famous for its excellent grinding performance and wide range of applications. CBN grinding wheel, full name cubic boron nitride grinding wheel, is a synthetic superhard material, its hardness is second only to diamond, but with better thermal stability and chemical inertness. The research and development and application of this grinding wheel represent a major advancement in grinding technology, especially when processing high hardness and high wear resistance materials, CBN grinding wheels have demonstrated their unique advantages.
Classification:
CBN Grinding wheels can be divided into the following four types according to different processing techniques and different components of binders used. Their properties and uses (referring to mechanical processing purposes) are also different.
| Electroplated CBN grinding wheel |
The molding process of the grinding wheel is simple and the production cost is low. The molding is simple but there is only one layer of plating, which cannot be corrected. During the processing, it is difficult to know when the grinding layer is damaged. It is suitable for small-batch mechanical processing and geometrically complex molding grinding and as a dressing roller. |
| Sintered CBN grinding wheel |
It has high hardness and density, and is processed into high-precision dressing rollers at a high cost. It is mainly used for dressing rollers of grinding wheels and large-scale processing of superhard materials. |
| Resin CBN grinding wheel |
The production process of the grinding wheel is simple and the production cost is low. The molding is simple but it is not easy to correct and shape. It is used for small-batch processing of multiple shapes. Such as tool grinding and tool processing, and glass processing. |
| Vitrified bond CBN grinding wheel |
The vitrified bond CBN grinding wheel has the advantages of strong grinding force, high-speed processing without burning the workpiece, and can be corrected and durable. It is ideal grinding tool with high-speed, high-efficiency and high-precision. |
Characteristics:
1. High hardness and high toughness
2. High temperature resistance and good thermal stability
3. Strong chemical inertness
4. Good thermal conductivity
5. Good grinding performance and good processing surface quality
6. Strong wear resistance and long life
7. Environmental protection, no pollution, energy saving and consumption reduction
8. High work efficiency and good comprehensive economic benefits
Notes:
The CBN grinding wheel is not suitable for grinding carbide and non-metallic hard materials. Under high grinding temperature, CBN will react chemically with alkaline aqueous solution. CBN grinding wheel will decompose in 300℃ alkaline solution and can decompose slightly in boiling water, which will destroy the crystal shape of abrasive grains. Therefore, only oil-based coolant can be used for grinding, not water-based coolant.
About us:
We are a technology-based enterprise integrating research, custom design, manufacturing and sales of superhard material wear-resistant tools. The company's professional technical team has been committed to the superhard material tool industry for many years, especially in the design and manufacture of diamond and cubic boron nitride tools.
FAQ:
Q: Are you a trading company or manufactuer?
A: We are a manufacturer with rich experience of international trade.
Q: Where is your factory? How can I visit there?
A: Our factory is located in Deyang, Sichuan, China. You can fly to Chengdu international airport, then we will pick you up.
Q: What payment methods do you support?
A: We support T/T, L/C, and other payment methods are accepted.
Q: What shipping methods do you support?
A: Sea transportation, air transportation, railway transportation, and road transportation, etc.
Q: What is your packaging?
A: The products are packed in cartons sea-worthy or export standard.
Q: What is your delivery time?
A: The delivery time is usually 30-60days or negotiable.
Q: Do you support OEM or ODM?
A: Yes. Just send us your drawing or sample, we will do all the remaining work.
